BULLET HIGH BITE SPRINT

BULLET HIGH BITE SPRINT CAR KIT

In Memory of Bob “The Bullet” Light

June 15,1959 – May 19, 2024

• BULLET KIT SETUP SHEET
• BULLET BLANK SETUP SHEET
• BULLET MANUAL

This kit is designed for use on High Bite style tracks that typically use 2.2″ buggy rubber tires.

Based off the Championship winning Outlaw 5 this all new Bullet High Bite Sprint comes with several improvements to optimize it for high bite racing surfaces when 2.2″ buggy tires are used.  Some of those new improvements include:

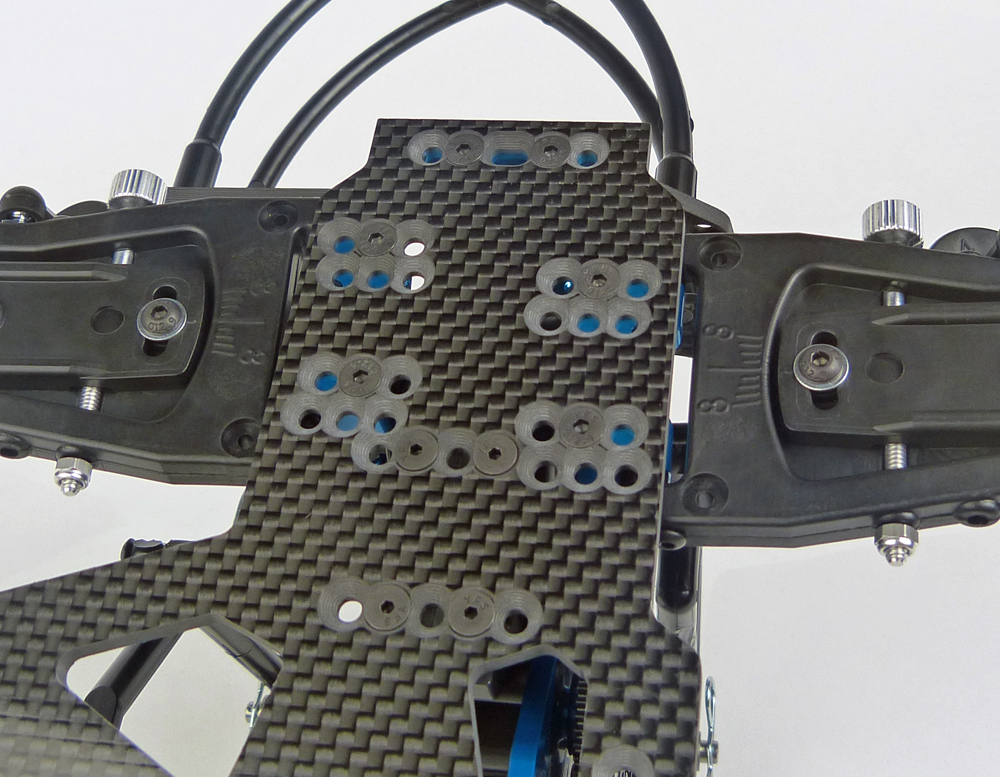

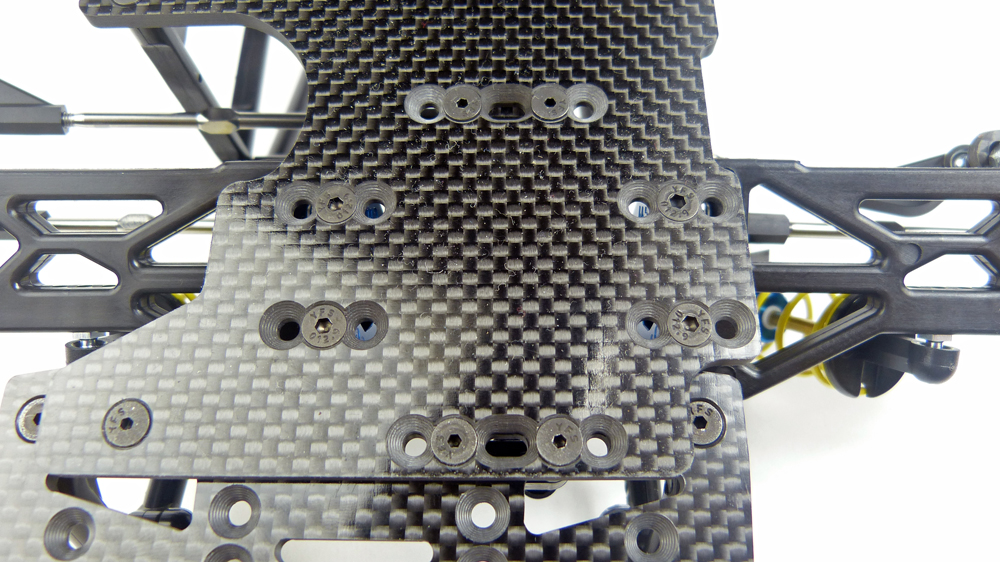

• New Carbon Chassis Plate with greater offset and toe options

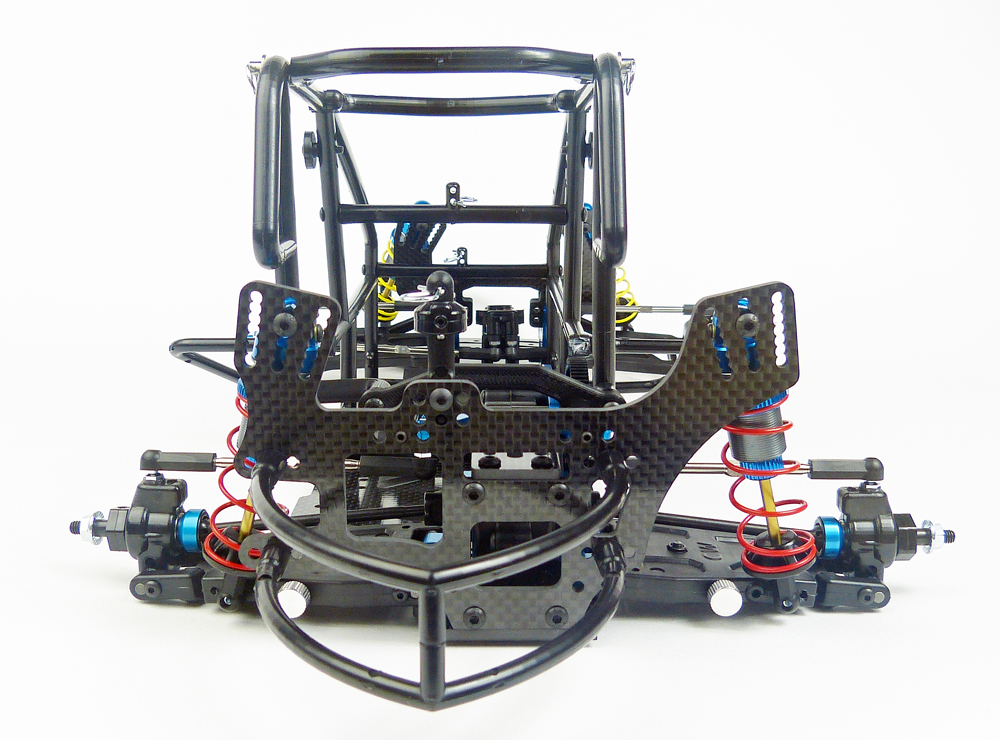

• New Carbon Front and Rear Towers with optimized shock positions

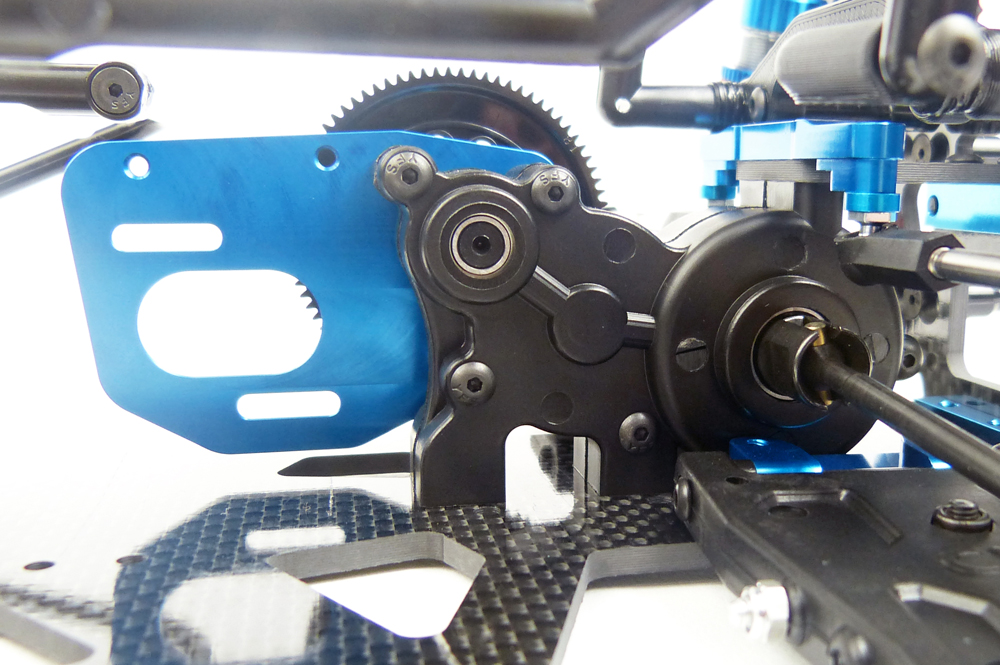

• Laydown Transmission with Aluminum Motor Plate

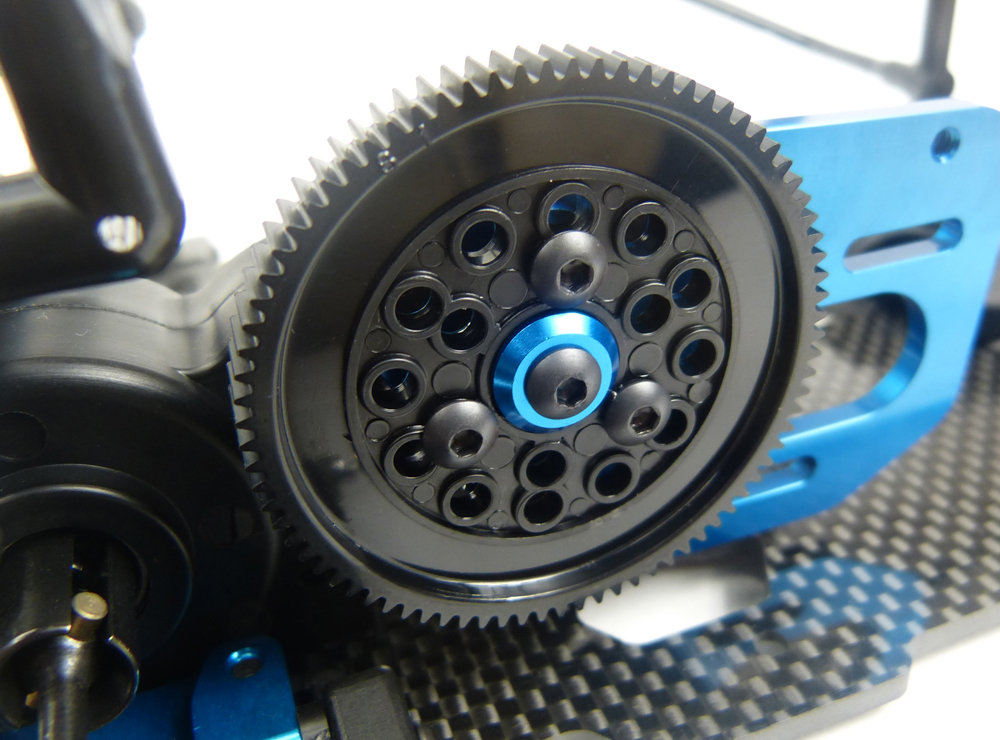

• New V2 Top Shaft with Tri-mount Spur Hub
• Front-mounted servo location with Angled Ball Cups

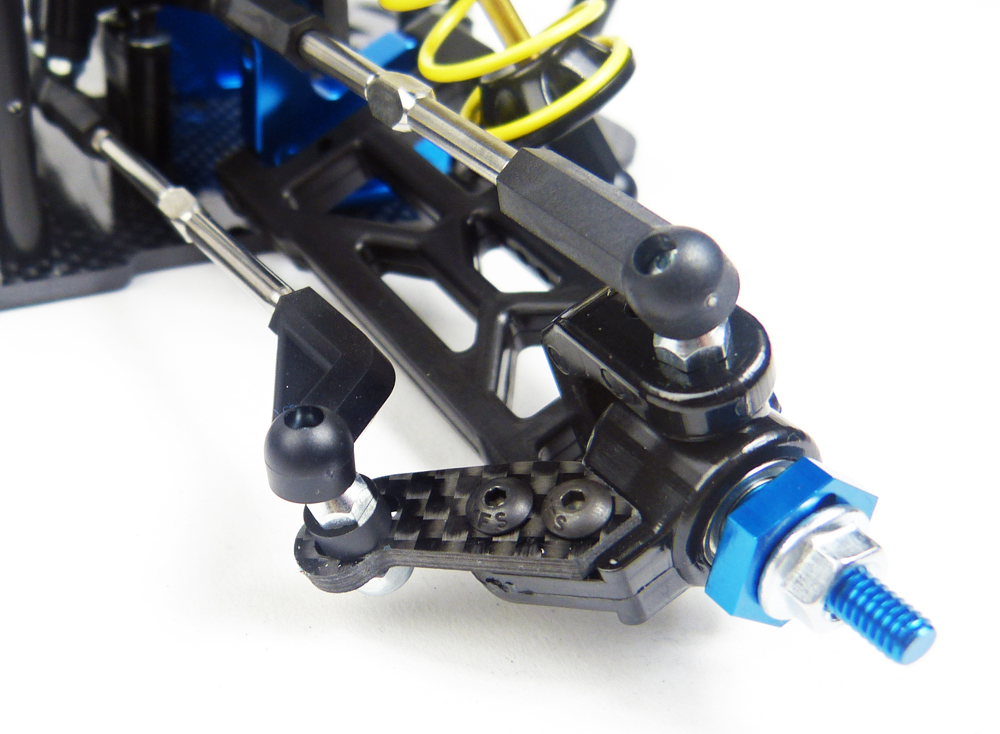

• Carbon Steering Extenders for wider tires
• Trailing Front Spindles
• New Front Bumper with brass weight mounting options.

Also Included as with all other previous kits are:

• Custom Works patented Adjustable Toe Rear Arms
• Titanium Turnbuckles throughout
• Full Ball Bearings
• 2.6 Ball Differential
• CW MDX Big Bore Shocks on all 4 corners
• Lightweight Cage

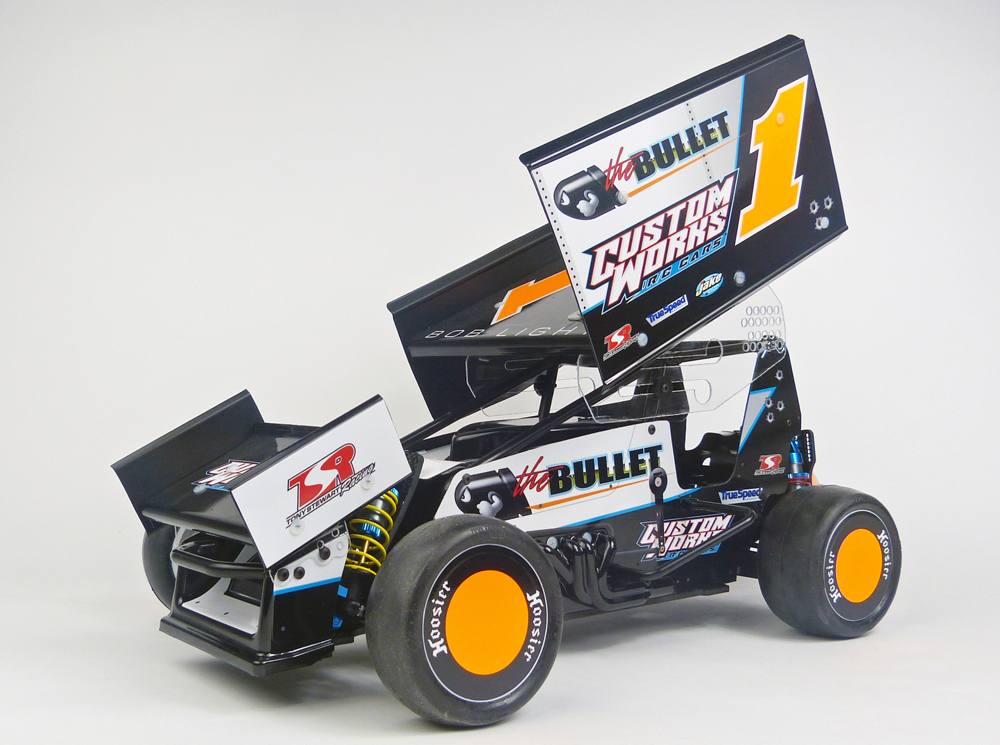

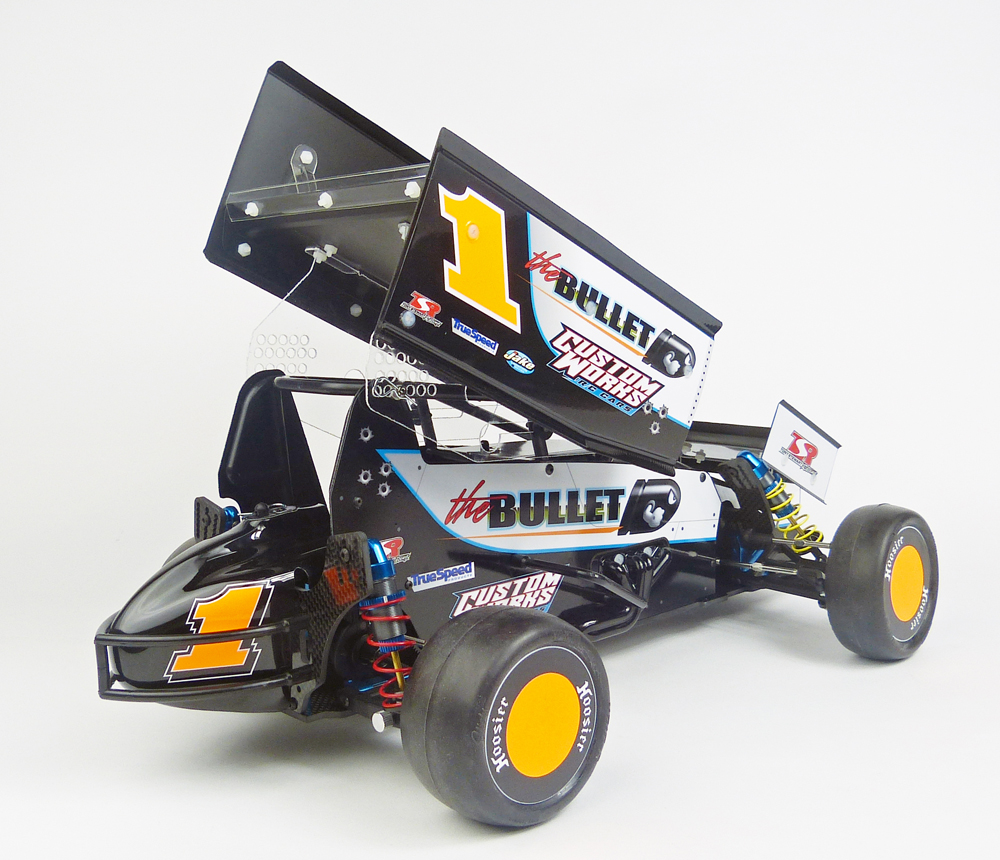

• Eldora Sprint Body

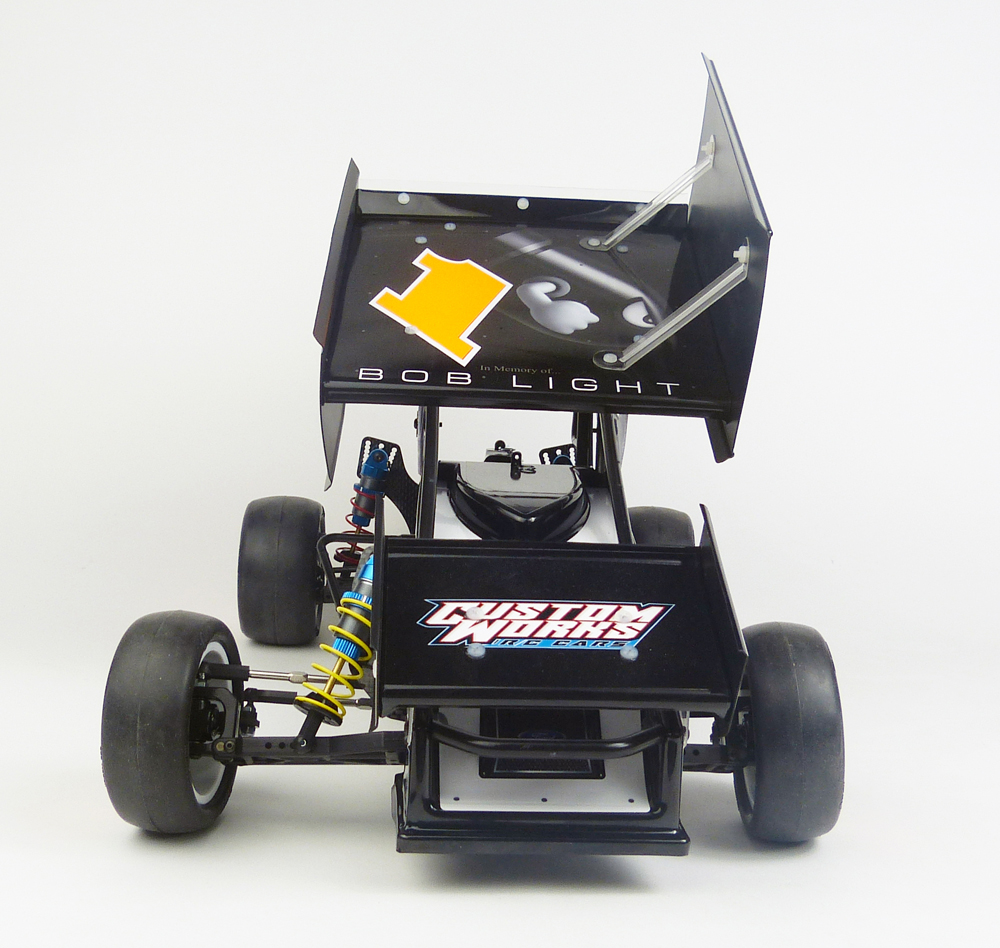

• 7×7 Flat Wing
• Large Front Wing

*Note: Not all hardware is metric yet but many of the key components are now which include the front and rear suspension mounts. With this change the 3mm screws will use a larger 2mm hex wrench which will make installation and removal of the screws much easier then with the 1/16″ wrench in the past.
